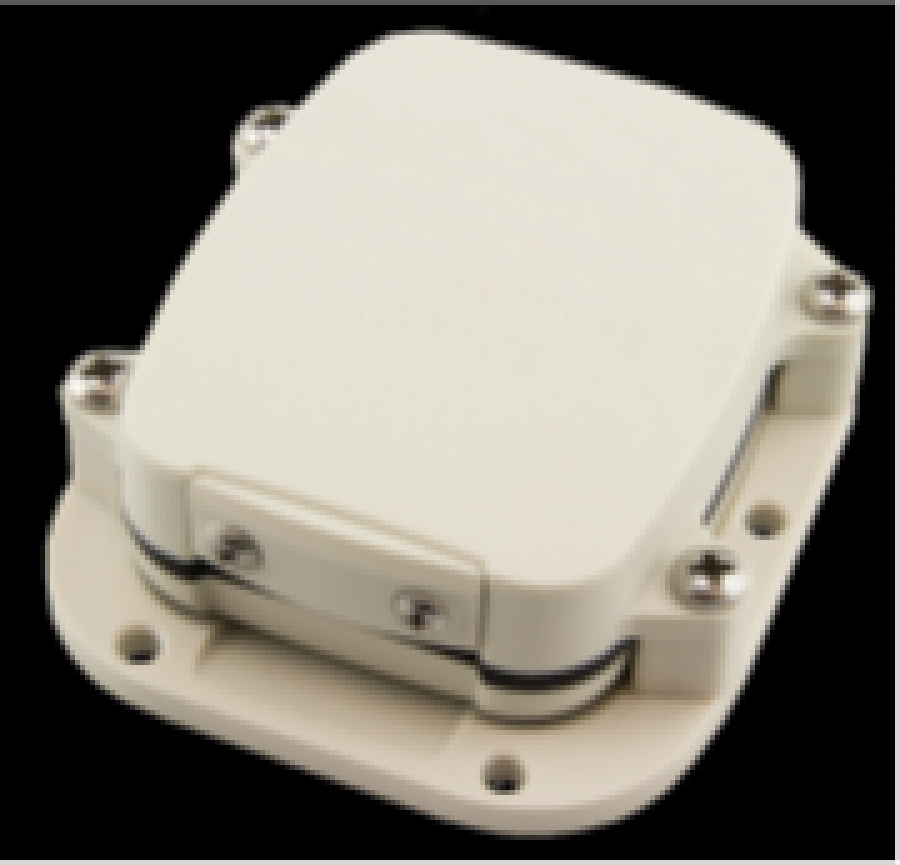

SmartOne C

SmartOne C

Designed for the intelligent management of fixed and mobile assets, the SmartOne C is a practical solution for a multitude of options including:

- 12 different repoting times

- Interval or 24-hour operation mode

- Alternate reporting schedules

- Low battery message

Track intermediate bulk containers, vehicles and boats as a solution to improve your asset’s operating efficiency and security.

The SmartOne C can be line-powered, or in the absence or interruption of external power, the SmartOne C will automatically switch to battery back-up. When using line-power, the user has maximum flexibility in messaging frequency allowing for regular monitoring of asset location.

The SmartOne C utilizes motion sensors, comparative GPS positions and custom configured sensors to gather and transmit asset status information. Each SmartOne C is configured to track its asset’s specific needs and provide intermediate and emergency alerts by email or text (VAR software integration required).



FEATURES

 - Quick installation: Use industrial adhesives, brackets or screw mounts for installation

 - Operates on 5v external line power, 8-22v regulator cable, or (4) AAA Lithium batteries

 - Automatic alerts: Change of location sensing sends alerts if asset moves outside of pre-determined range

 - Messaging reduction mode: Reduced satellite messaging if asset remains in same location for a pre-determined period of time

 - Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality

 - Accepts serial signals (TTL) from external inputs

CONFIGURATION SOFTWARE

Software configuration tool easily installs on PCs

BENEFITS

 - Asset-ready design: Allows for easy installation and field management without the need for antennas or external power

 - No need to purchase expensive proprietary batteries for replacement



SMARTONE C SETUP INCLUDES

 - 12 different reporting times

 - Interval or 24-hour operation mode

 - Alternate reporting schedules

 - Low battery message

 - Motion Sensor/Vibration parameter and scheduling



TECHNICAL SPECIFICATIONS



OPERATING SPECIFICATIONS

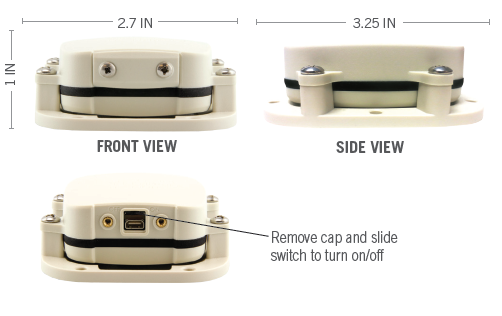

DIMENSIONS                                   2.7 IN (H) x 3.25 IN (W) x 1 IN (D) (with brackets)

WEIGHT                                          3.6oz/102g (with 4 batteries and mounting hardware)

OPERATING TEMPERATURE             -30° to +60° C  NOTE: The unit shall remain

                                                      operational over the -40° to +85°C range, though may

                                                      experience battery life and RF signal degradation

LINE POWER                                   5v DC or 8-22v DC with regulator cable

BATTERY TYPE                                (4) AAA 1.5v lithium

                                                      Provides 1.5+ years of battery life

                                                      Removes the need to purchase expensive proprietary

                                                      batteries for replacement

CERTIFICATIONS                             ANATEL Certification for Brazil (pending)

                                                      FCC CFR Parts 15 and 25

                                                      Industry Canada

                                                      CE Mark (European Certification)

                                                      COFETEL (pending)

STANDARDS                                   SAE J1455 MIL STD 810

                                                      NEMA 4X / IP68

                                                      RoHS Compliant

SATELLITE TECHNOLOGY                 Global LEO Satellite operation using the Globalstar Simplex Data Network

ACCESSORIES

- USB Configuration Cable (Sold Separately)

- Combined Serial, 5v LP, I/O Cable (Sold Separately)

- Combined Serial, 22v LP, I/O Cable (Sold Separately)
