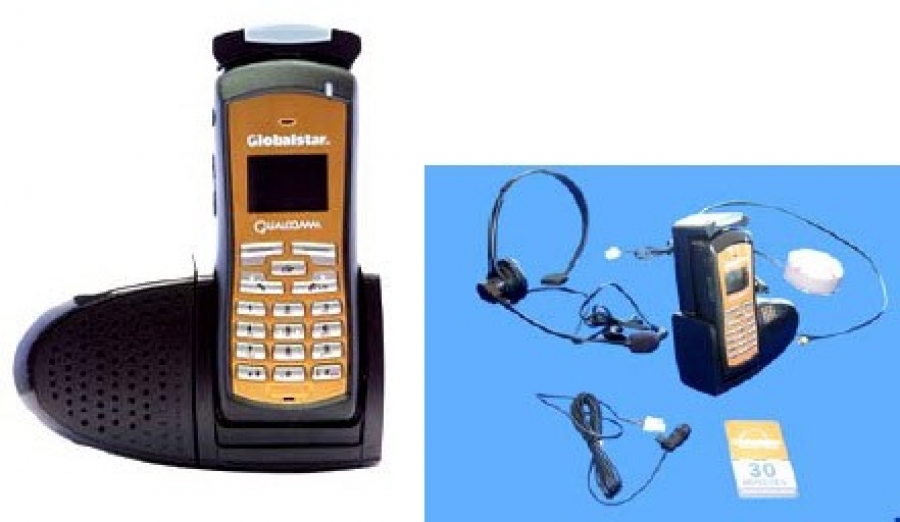

Installation Kit GIK-1700

The GIK-1700 provides in vehicle or vessel operation of the Globalstar GSP-1700 handset. When your vehicle or vessel is frequently your office, the Globalstar Installation Kit offers flexibility and additional hands-free usability to those who frequently travel in areas where cellular coverage is unavailable. The GSP-1700, sold separately, easily clips into the installation kit housing allowing for hands-free convenience.

FEATURES

COMPACT MODULAR DESIGN

  • Space saving size with the flexibility to accommodate various speaker and microphone mounting options

3 ANTENNA CHOICES

  • Low-Profile Patch Antenna
  • Helix Antenna
  • Marine Helix Antenna designed specifically for harsh environmental conditions

OPTIONAL PRIVACY HANDSET

  • Helps overcome background noise and provides confidentiality for sensitive conversations

2.5MM AUDIO OUTPUT JACK

  • Easily access the audio output jack to use with your favorite headset or add a Bluetooth adaptor for wireless freedom



BENEFITS

HANDS FREE OPERATION

  • A convenient and safe way to make calls from your vehicle or vessel

FLEXIBLE POWER OPTIONS

  • Install directly into the vehicle or vessel's wiring or use the included car charger adaptor to power the GIK-1700 (Professional Installation Recommended)

CONVENIENT BATTERY CHARGING

  • GIK-1700 charges the GSP-1700's battery when the handset is connected to the GIK-1700

SIMPLIFIED DATA ACCESS

  • Utilize data functionality with the GSP-1700 connected to the GIK-1700 while recharging the handset battery



GIK-1700 INCLUDES:

  • Cradle
  • Microphone
  • Speaker
  • Choice of Antenna (Low Profile Patch antenna, Helix antenna or Marine Mount Helix antenna)
  • 14 foot antenna cable
  • Car Power Adapter
  • Mounting Hardware and Wiring



SPECIFICATIONS:

TEMPERATURE RANGE

Car Kit Antenna: Operational: -30 to +50ºC (-22 to +122ºF)

Non-Operational: below -40 and above +85ºC (-40 to +185ºF)

Car Kit Cradle: Operational: -30 to +50ºC (-22 to +122ºF)

Non-Operational: below -40 and above +85ºC (-40 to +185ºF)

Phone: Operational: -20 to +55ºC (-4 to +131 ºF)

Non-Operational: below -30 and above +60ºC (-22 to +140ºF)



ELECTRICAL REQUIREMENT

12 VDC nominal input voltage

RF POWER OUTPUT

0.794 watts maximum (+29.0 dBm)

DIMENSIONS (CRADLE)

16.92 cm H x 7.33 cm W x 5.79 cm D

FREQUENCY RANGE

(CHANNEL CENTER FREQUENCY)

Globalstar Transmit: 1610.73 to 1620.57 MHz

Globalstar Receive: 2484.39 to 2499.15 MHz

TECHNOLOGY

Globalstar Satellite Mode (CDMA)
