Sat-Fi The World's most powerful satellite hotspot

Sat-Fi The World's most powerful satellite hotspot

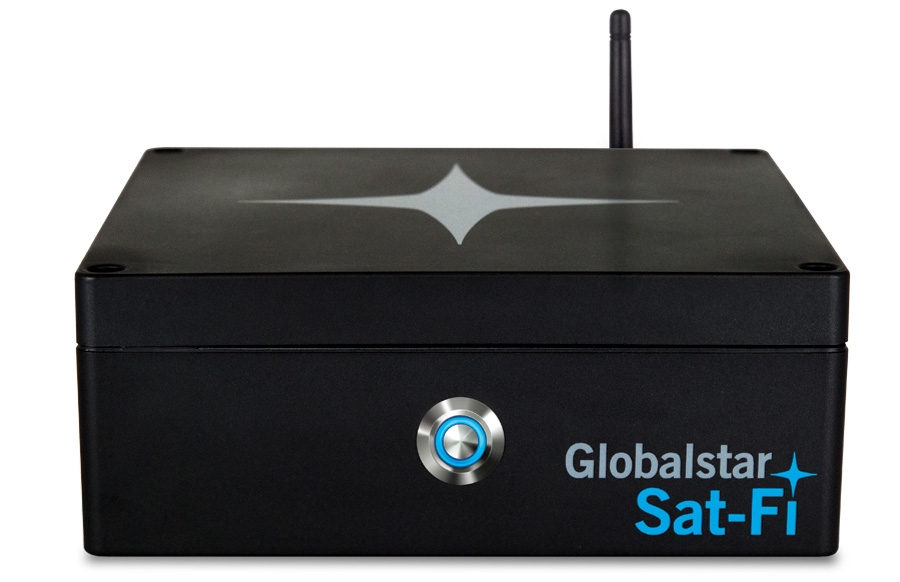

Sat-Fi

THE WORLD’S MOST POWERFUL SATELLITE HOTSPOT

With Sat-Fi, Globalstar customers can use their existing Wi-Fi enabled devices to send and receive calls, email and SMS text messages* over the newest, most modern satellite network. Whether on land or at sea, up to 8 Sat-Fi users will be able to maintain reliable connectivity when beyond cellular with one Sat-Fi device. Experience the industry’s best voice quality and the fastest data speeds, all at an affordable price.

BENEFITS

  • Be Heard with Globalstar’s crystal-clear voice quality
  • Be Productive with the industry’s fastest data   speeds, allowing you to send more in less time,   therefore saving airtime costs
  • Be Efficient with up to 8 users using their   existing devices to share one Sat-Fi connection
  • Be Economical with the most affordable airtime plans



WHO NEEDS SAT-FI?

Sat-Fi is ideal for users working or traveling beyond the range of cellular in industries such as:

  • Energy /           Oil       &         Gas
  • Commercial /           Recreational    Marine
  • Emergency Management
  • Construction
  • Natural Resources
  • Transportation



KEY FEATURES

  • Powered by the world’s newest, most modern satellite network
  • Easily make calls, send emails and SMS from any Wi-Fi enabled device from beyond cellular
  • Fastest data speeds in the industry for sending and receiving email
  • Enjoy affordable, crystal-clear voice quality with seamless connectivity
  • Simple 10 digit dialing, caller ID and ability to use existing device contacts via the Sat-Fi App
  • Connect up        to         8          users    to         Sat-Fi at one time
  • Connect with     emergency      services           should the unexpected occur
  • Designed for       both     vehicle/vessel-based   and fixed locations



SAT-FI APPS

  • Available for       Android,         Apple  iOS,     Mac     and      Windows
  • Easily make   voice   calls,    send    emails, SMS    &         post     to social media
  • Conveniently use       existing           device contacts
  • O.S. alert capability* with GPS location data sent to emergency responders
  • Transfer incoming         calls     and      send    text      messages         between connected users



SAT-FI INCLUDES

  • Sat-Fi unit
  • AC/DC power  supply
  • 12VDC car       adapter
  • Waterproof DC      power  cable
  • Wi-Fi antenna
  • External satellite           antenna
  • 4,3m coaxial antenna           cable   (9,75m, 14,3m and 26m also available)
  • Mounting accessories
  • Quick start     guide



SPECIFICATIONS

DIMENSIONS

6.3 in x 6.3 in x 2.4 in

16 cm x 16 cm x 6.1 cm

POWER SUPPLY

12VDC

MAX POWER INPUT

14W

OPERATING ENVIRONMENT

-22F to +140F -30C to +60C

SIGNALING

SIP

DTMF FORMAT

RFC2833

# VOICE CHANNELS

1

AUDIO CODES

G.711u

FREQUENCY/POWER

2.4 GHz/100 mW

Max Transmit

STANDARDS

802.11 b/g/n

WI-FI RANGE

Up to 100 ft

Works with:

Android, iOS



SATELLITE ANTENNA OPTIONS

ANTENNA TYPE

Active

ANTENNA POWER

7VDC Available for Active Antennas

OPERATING FREQUENCY

Transmit (TX) 1610 – 1626 MHz Receive (RX) 2483.5 – 2500 MHz

TRANSMIT POWER

+31dBm EIRP

EXTERNAL CONNECTORS

TX – SMA Female RX – SMA Male

OPERATIONAL ENVIRONMENT

-67°F to +185°F

-55°C to +85°C
